Naturally Aspirated Horsepower & Supporting Mods

Discussion in 'N/A Mods & Tuning' started by Torspd, Jul 19, 2012.

  1. Torspd

    Torspd Moderator
    Staff Member

    Joined:
    May 25, 2008
    Messages:
    14,814
    Likes Received:
    40
    Here is the thread specifically for all of you who have an N/A modded beast, and wish to post your dyno results.

    Great place for all members and future members to see first hand what mods have which gains, or combined gains from all of your mods. :blurock:




    SCOUTDEED69


    Stock XR - 191.7 WHP 231.6 WTQ


    (base dyno from Scoutdeed69): http://www.xr-underground.com/vb3/showthread.php?t=49762



    [​IMG]This image has been resized. Click this bar to view the full image. The original image is sized 1023x612 and weights 138KB.[​IMG]

    [​IMG]This image has been resized. Click this bar to view the full image. The original image is sized 1023x612 and weights 192KB.[​IMG]






    NUPEPRIME

    Red file: current mod list on 93 pump, X-1, JBA LY, ARP Y-pipe, URD fuel pump, 3" Magnaflow w/res.

    Blue file: before exhaust upgrade...

    [​IMG]This image has been resized. Click this bar to view the full image. The original image is sized 1023x612 and weights 133KB.[​IMG]

    [​IMG]This image has been resized. Click this bar to view the full image. The original image is sized 1023x612 and weights 156KB.[​IMG]




    1GRracer ***4Runner***


    1. AFE intake
    2. APR X1
    3. NST intake manifold spacer
    4. TB coolant bypass
    5. Doug Thorley long tubes
    6. URD fuel pump


    [​IMG]This image has been resized. Click this bar to view the full image. The original image is sized 1024x768 and weights 155KB.[​IMG]


    Newest dyno as of 8-17-12


    1. AFE intake
    2. APR X1
    3. NST intake manifold spacer
    4. TB coolant bypass
    5. Doug Thorley long tubes
    6. URD fuel pump
    7. URD 4x4 Y-Pipe


    [​IMG]
    [​IMG]
    [​IMG]





    SIXSTRINGDAVE

    I finally found this from the other day. What i wanted to point out here is the dip in the Air/Fuel line on the chart. At around 4300 RPM you can see that it goes rich. Before this, we had leaned it out a bit. It was really dipping to somewhere like 10.8 and i was losing tons of power. Only getting to 228 to 2301-ish HP.

    So we got it leaner a bit and the truck did better as you can see(241 WHP). But why is it still dipping around 4300? I was running out of time on the Dyno that day so we called it good. But i left wondering if we could have done better.

    I am happy about it making power all the way to Redline. Makes me want to go the X-1 route to take the rev limiter to 6250. But i am still a bit unhappy about my Torque.



    1.Hayden E-fan
    2. NST Pulley
    3. TRD cai
    4. 2.5 inch Magnaflow Catback and Resonator
    5. Doug Thorley LTs
    6. Tuned URD Maf Cal


    [​IMG]This image has been resized. Click this bar to view the full image. The original image is sized 800x619 and weights 120KB.[​IMG]





    WHITEBEAUTY ***4Runner***

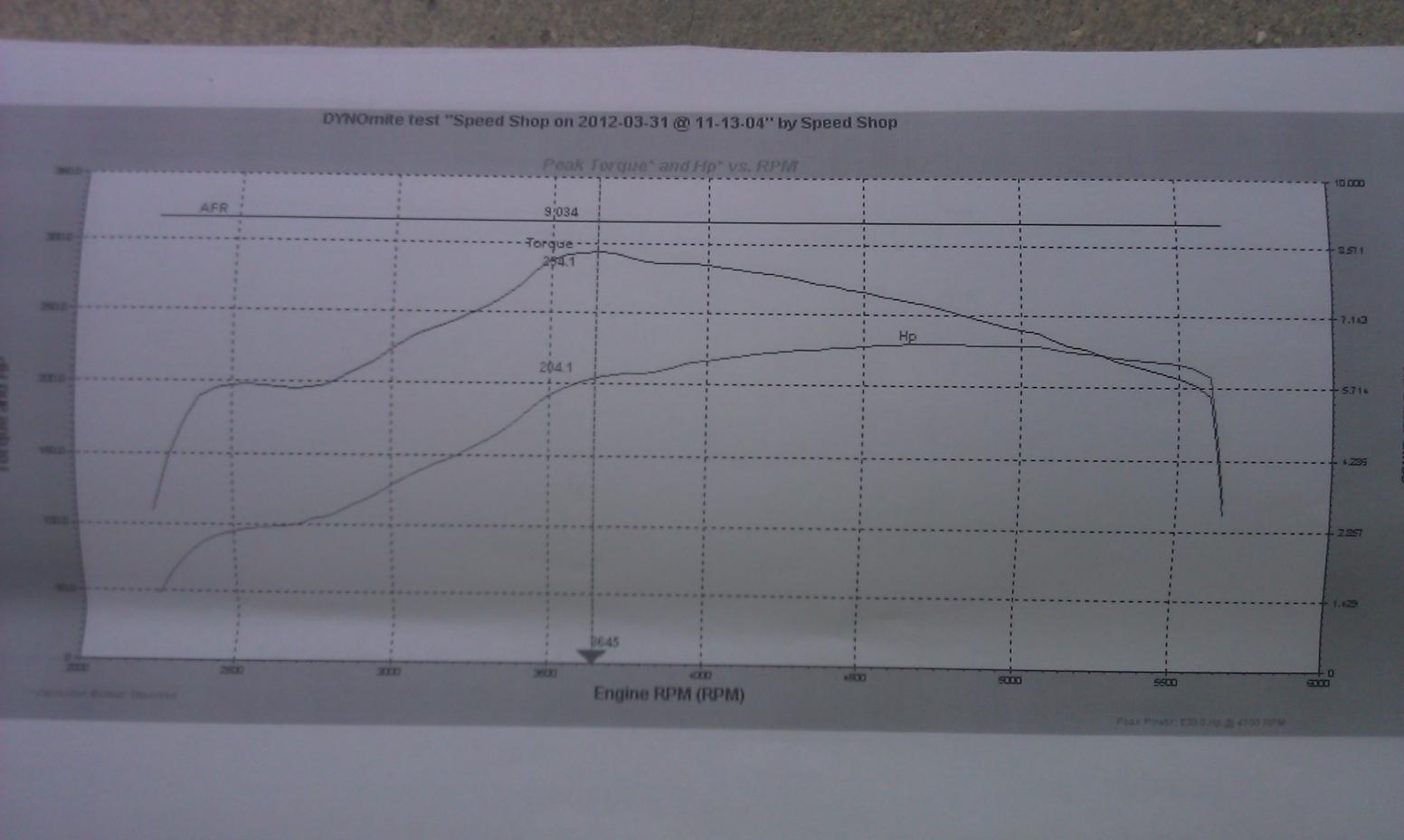

    Well im impressed....4Th gear pull 294tq n 230hp. Post the sheets up when i get home.
    Dang it i cant post the vid here. DOnt know how. Heres the link.

    Mods:

    1. X1 w/ cam gears & t-stat
    2. Volant Cai With custom scoop
    3. Poweraid TBS
    4. NST manifold spacer
    5. DTLT-relocated o2 kit
    6. factory y no cats
    7. Borla cat back
    8. Nst Crank, Wp, ALt pulleys
    9. Walboro 255lph fuel pump
    10. 61lb injectors
    11. E85 IKH20 denso plugs gapped at .035

    [​IMG]




    URD's DynoJet:

    OEM Base and True Cold Air Intake(After)

    Copywrite URDUSA www.urdusa.com
    http://www.urdusa.com/Intakes-Cold-Air-Intakes/c151_164/p1260518504/URD-TRUE-COLD-AIR-INTAKE,-05+-Tacoma-4.0L-V6/product_info.html
    [​IMG]



    If there is a problem with me posting this here Gadget, I will gladly remove it. :top:

    Motonxruchick184

    TRD Gen 1 CAI
    NST Pulleys
    Magnaflow muffler

    (Will update with new dyno including JBA short tube headers and JBA catback)


    225 WHP 262 WTQ
    [​IMG]

    #1 Torspd, Jul 19, 2012
    Last edited: May 31, 2013
  2. BradyT88

    BradyT88 New Member

    Joined:
    Mar 16, 2012
    Messages:
    70
    Likes Received:
    0
    This is pretty cool Torspd!!

    SIXSTRINGDAVE's dyno really makes we want to get the URD TCAI, maf cal, E-fan, and lightweight pullies!!

    He has around 50 more ponies and foot-pounds over stock!

  3. Torspd

    Torspd Moderator
    Staff Member

    Joined:
    May 25, 2008
    Messages:
    14,814
    Likes Received:
    40
    DO IT!!!!!!

  4. BradyT88

    BradyT88 New Member

    Joined:
    Mar 16, 2012
    Messages:
    70
    Likes Received:
    0
    My to-do list is just so damn big at the moment I almost don't know where to start... Did I win the lottery yet?:D

  5. blackx-runner

    blackx-runner "White Flash"

    Joined:
    Jan 14, 2007
    Messages:
    7,578
    Likes Received:
    10
    Sticky this sheit Mr. Mod. :top:

  6. MplsX

    MplsX Member

    Joined:
    Nov 24, 2010
    Messages:
    377
    Likes Received:
    1
    All of the graphs look good except the one from URD. Why doesn't the lines from horsepower and torque cross at 5252 rpm's?

  7. Torspd

    Torspd Moderator
    Staff Member

    Joined:
    May 25, 2008
    Messages:
    14,814
    Likes Received:
    40
    Stuck. :top:

    Some do that. Don't remember why. Gadget might remember.

    #7 Torspd, Jul 19, 2012
    Last edited: Jul 19, 2012
  8. blackx-runner

    blackx-runner "White Flash"

    Joined:
    Jan 14, 2007
    Messages:
    7,578
    Likes Received:
    10
    SCAM!!!
    No its all to do with with the method for finding HP and TQ. Different calculations and formulas can be used depending on what parameters are being measured by the dyno.

  9. BradyT88

    BradyT88 New Member

    Joined:
    Mar 16, 2012
    Messages:
    70
    Likes Received:
    0
    I don't know a whole lot about this stuff, so why is it that most of them cross at ~5200 rpm? Does it have to do with the formula for calculating horsepower using the torque numbers?

  10. Gadget

    Gadget Well-Known Member

    Joined:
    Jan 13, 2007
    Messages:
    10,828
    Likes Received:
    100
    It is because the scales on each side of the chart are different.

    G

  11. Whitebeauty

    Whitebeauty New Member

    Joined:
    Oct 15, 2011
    Messages:
    5,237
    Likes Received:
    0
    Here you go. Im sure u can Mod this post to unite it with the pic.

    X1 w/ cam gears & t-stat Volant Cai With custom scoop Poweraid TBS NST manifold spacer DTLT-relocated o2 kit factory y no cats Borla cat back Nst Crank, Wp, ALt pulleys Walboro 255lph fuel pump 61lb injectors E85 IKH20 denso plugs gapped at .035

  12. x8o8runner2012

    x8o8runner2012 New Member

    Joined:
    Apr 4, 2012
    Messages:
    251
    Likes Received:
    0
    Thats some decent numbers for n/a

  13. MadToy

    MadToy New Member

    Joined:
    Jun 20, 2012
    Messages:
    103
    Likes Received:
    0
    Any way to update the mods list on some of these that aren't clear if they still have cats or not? I'm assuming all of the ones with long tubes went without cats?

  14. 1GRracer

    1GRracer "Pete"

    Joined:
    Aug 8, 2010
    Messages:
    3,586
    Likes Received:
    0
    My dyno that Torspd has posted i still have my factory y pipe, that has cats, in addition to my stock catback. Im testing my truck again today with a urd y. Are you looking for a dyno with all four cats in place?

  15. Torspd

    Torspd Moderator
    Staff Member

    Joined:
    May 25, 2008
    Messages:
    14,814
    Likes Received:
    40
    Your assumption is correct. If their mods listed don't have exhausts components that remove some or all of the cats, then they have cats.

  16. MadToy

    MadToy New Member

    Joined:
    Jun 20, 2012
    Messages:
    103
    Likes Received:
    0
    Ah - thanks. I'm trying to figure out how much gain is from the long tubes, vs. how much of the gain is actually from the deletion of the cats. I have a DT Y pipe, so I only have the front 2 cats now. But I'm debating on headers as I don't want to go catless.

    Trying to get all my ducks in a row for the eventual supercharger :)

  17. cwatt

    cwatt New Member

    Joined:
    Jan 7, 2012
    Messages:
    438
    Likes Received:
    0
    I'd be pissed if I were 1GRracer. Of all people to expect to be running good numbers after a $1700 X-1 investment, it would be him... except NUPEPRIME is pulling in another 20hp on a stock tune.

  18. Torspd

    Torspd Moderator
    Staff Member

    Joined:
    May 25, 2008
    Messages:
    14,814
    Likes Received:
    40
    Once 1GRracer has this new dyno with the addition of the URD Y-pipe (4x4 version), we will be able to see what kind of gains it gives. As well as how it adjusts the power curve.

    However, I just thought of something. You are now running a tad smaller diameter tire, since you have mine on. So it might reduce the reading just a tad.

    His automatic has a lot to do with the HP numbers. Same as Whitebeauty.

    Nupeprime's dyno also has an X-1.

    #18 Torspd, Aug 17, 2012
    Last edited: Aug 17, 2012
  19. cwatt

    cwatt New Member

    Joined:
    Jan 7, 2012
    Messages:
    438
    Likes Received:
    0
    Ah, very interesting. Perhaps you could edit the post to reflect Nupeprime's X-1. Comment officially rescinded .

  20. Torspd

    Torspd Moderator
    Staff Member

    Joined:
    May 25, 2008
    Messages:
    14,814
    Likes Received:
    40
    Edited. :top:
